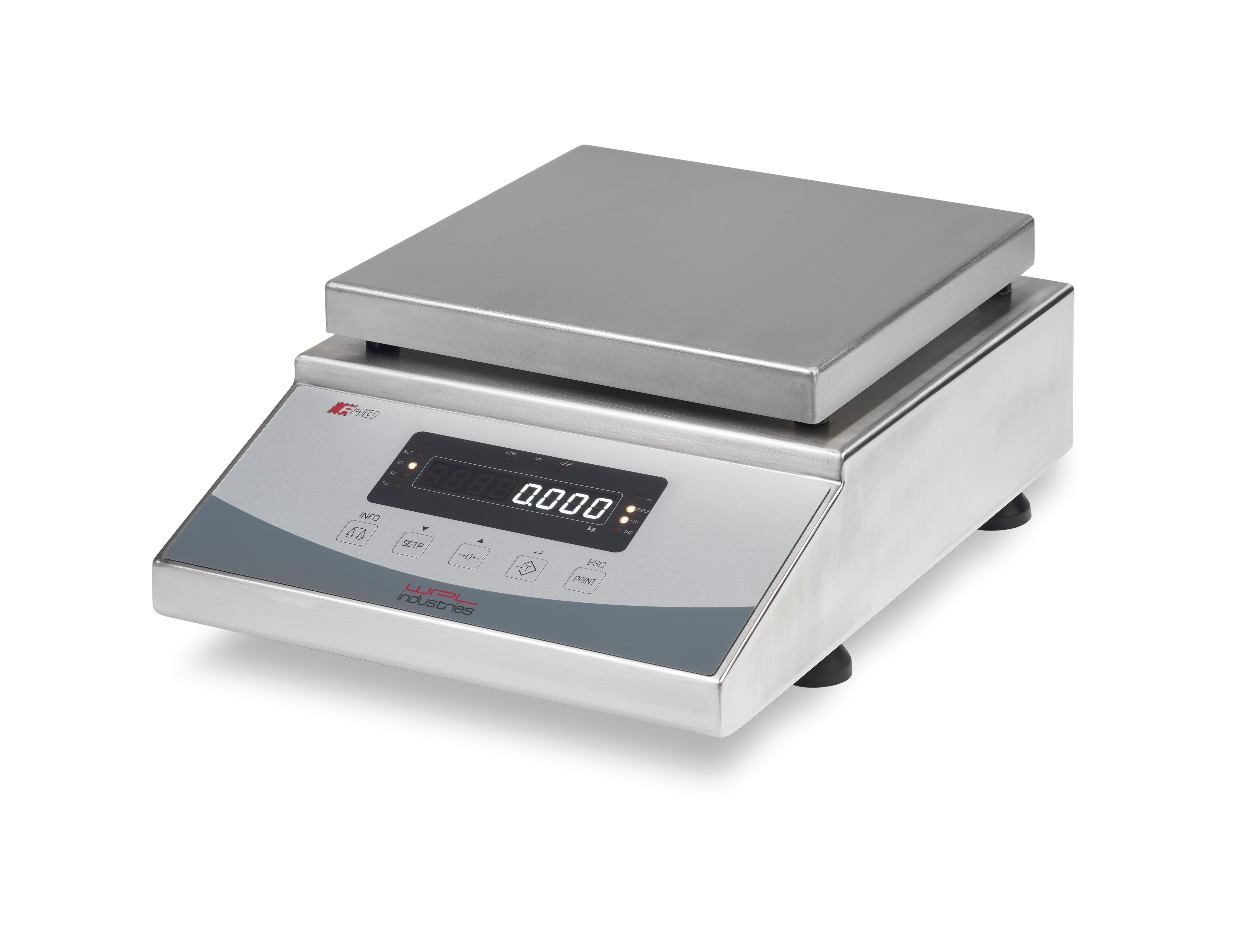

R10 M3 Scientific Marine Scales

The marine weighing platforms from WPL Industries BV are designed to meet the strongest requirements for operating at sea.

A multirange, high accuracy scale, motion compensated, waterproof and robust, especially developed for scientists and others in need for accurate weighing at sea. A compact light weight scale, ideal for sample weighing.

The built-in motion compensation for use at sea takes care of weight fluctuations (sway, roll and yaw) caused by waves and vibrations. Built-in reporting and statistics as well as printing are available and can be custom made.

The scales can be connected to the R10 range of indicators. Built-in reporting and statistics as well as printing are available and can be custom made.

- All marine scales are made out of stainless steel 316L
- Custom specifications on request

  • Product Characteristics
  • The R10 M3 has the following distinctive features:

    • Weighing scale with motion compensation for weighing at sea.
    • Design and styling for industrial use.
    • Ease of use, based on the motion of the vessel.
    • Automatic filter based on motion.
    • For connection to one or more load cells.
    • High quality construction in AISI 316 stainless steel.
    • Latest technology including crystal white segmented LEDs with dim technology.
    • Optional Data storage device.
    • Industry standard shields for extension with Bluetooth, Wi-Fi, Ethernet based.
    • LED Display, 0.56 inch (14 mm), 7 segment.
    • 24bits Sigma/Delta AD.
    • 2 ADC channels.
    • On PCB temperature monitoring.
    • Battery charge circuit
    • USB device port on PCB for optional connect directly to a PC on request.
    • AC or DC models.
    • Built-in industrial connectors for load cells or serial ports.
    • Realtime clock.
    • Operator functions through Menu key for Scale select, Preset Tare, Accumulator, Time & Date and Setpoints.
    • Password protection for user and configuration changes.
    • 50 presets for weight checking with under limit, target and over limit setpoints, tare and price.
    • 13 onboard digital I/O channels for further extension
    • Selectable ticket formats for Header Text, Gross, Net, Accumulator, Setpoints.
    • Local/Remote operation.
    • Multi range or multi interval weighing.
    • Filter settings for light, medium and heavy noise.
    • Relay output (3).
    • 1x RS232 port.
    • 110-240V or 12VDC input.

    OPTIONS/ACCESSORIES

    • Analog output, 12-bit resolution, 0-10VDC, 0-20mA, 4-20mA
    • Relay output, (4) dry contact, normally open (SPST) 30VDC/250 VAC at 3 Amps
    • Interface for Profinet®, Profibus®, Modbus TCP®, EtherNet/IPTM and DeviceNet® protocols
    • Metrological hardware sealing kit
    • Battery pack

    Applications

    • Single weighing
    • Parts counting
    • Tolerance check +/-
    • Filling
    • Calculation

  • Extension possibilities for optimal usage
  • Options / Accessories

    Computer connection

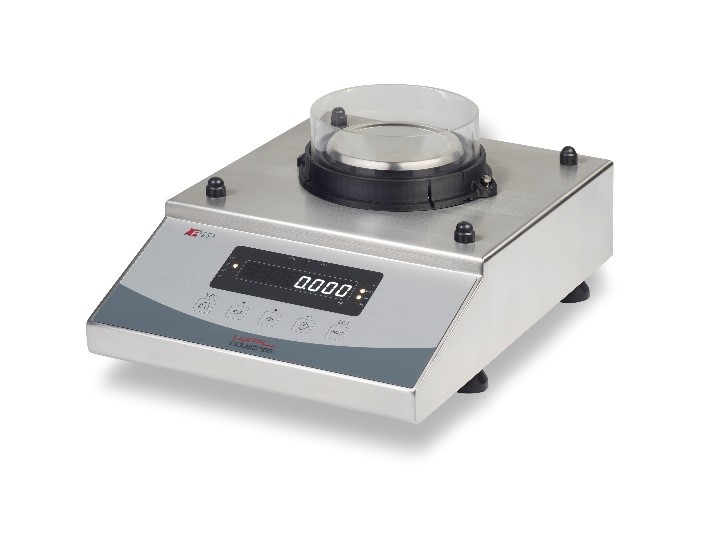

    Wind cover for small weights
    Printer connection / label printing
    Extension plate for weighing of whole fish

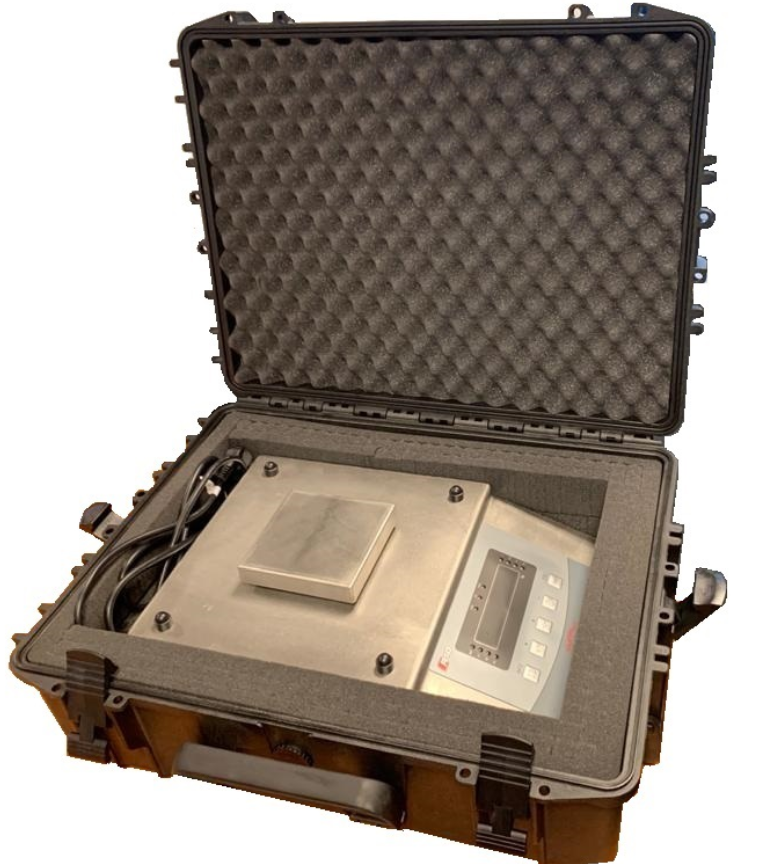

    Aluminum carrying case
    Rechargeable battery
    GPS module
