Grading and batching

WPL industries sets the new standard for grading systems.

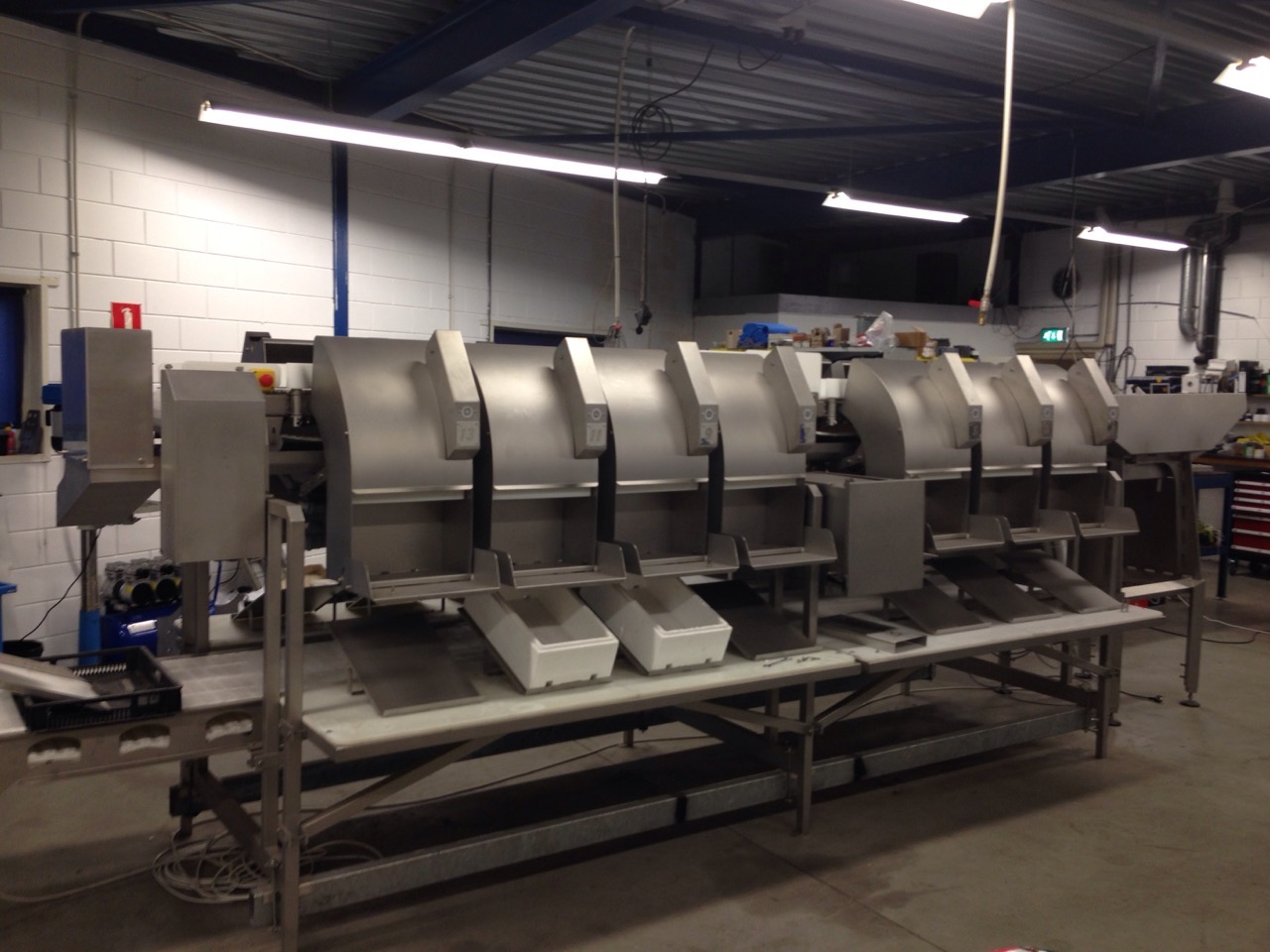

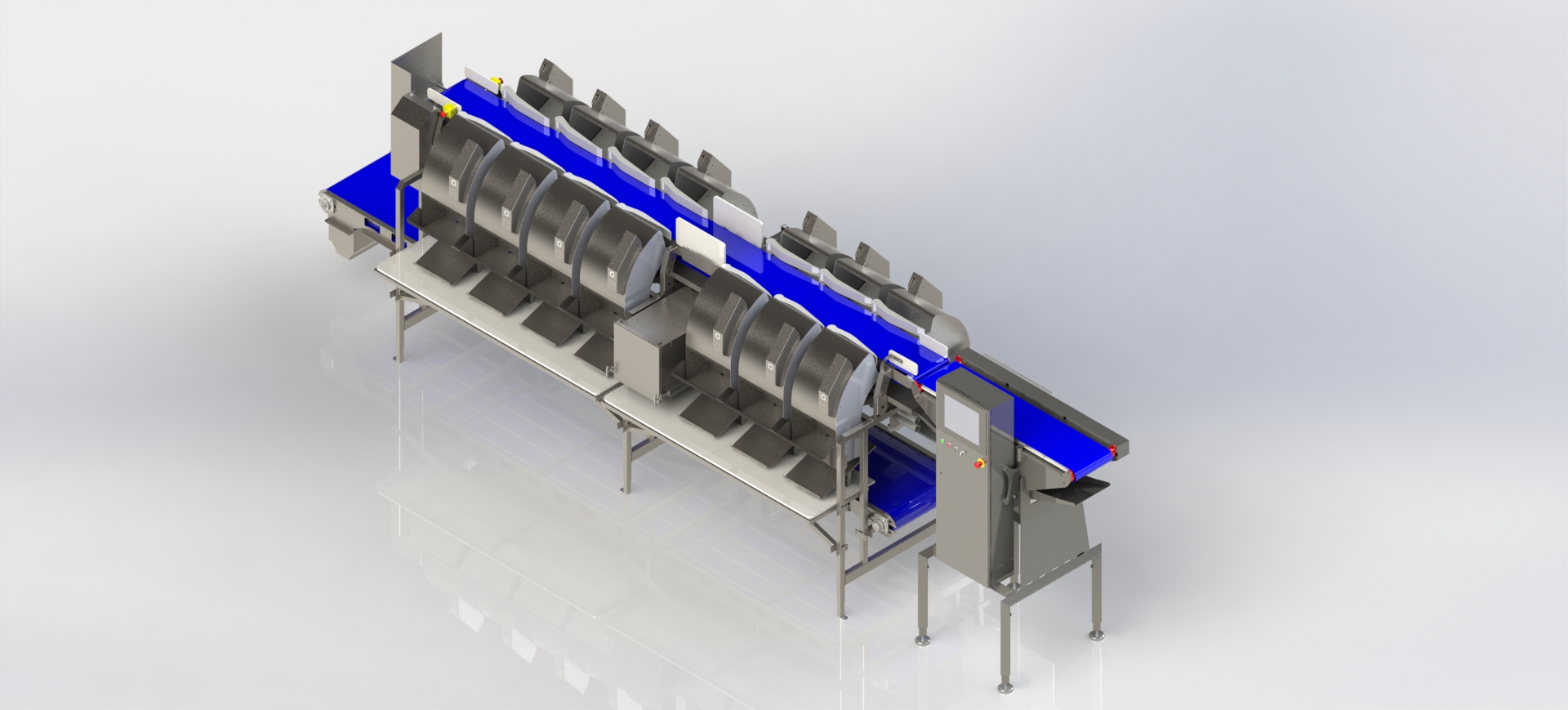

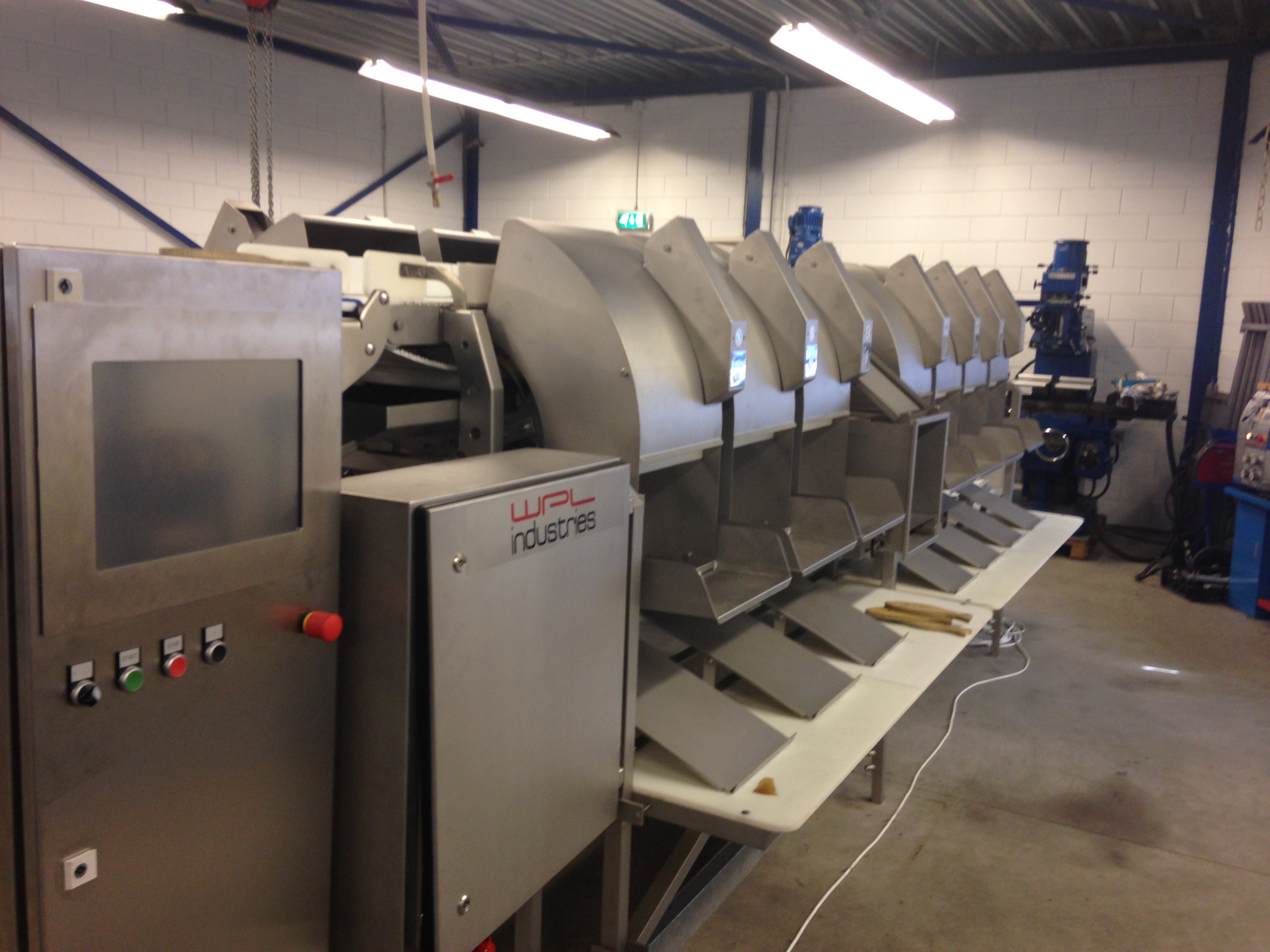

The WPL Industries grading systems consist of an infeed belt, a dynamic weigher and a grading belt. Our solution leads the way in the branch thanks to the various infeed, dosing and grading possibilities.


High accuracy
Fast weighing and grading
Robust construction
Several output possibilities
Several infeed possibilities
User friendly: Easy to use and maintain


Frozen seafood, poultry, meat
Fresh seafood, poultry, meat
Grading and batching to size
Batching with minimum overweight
Cheese batching

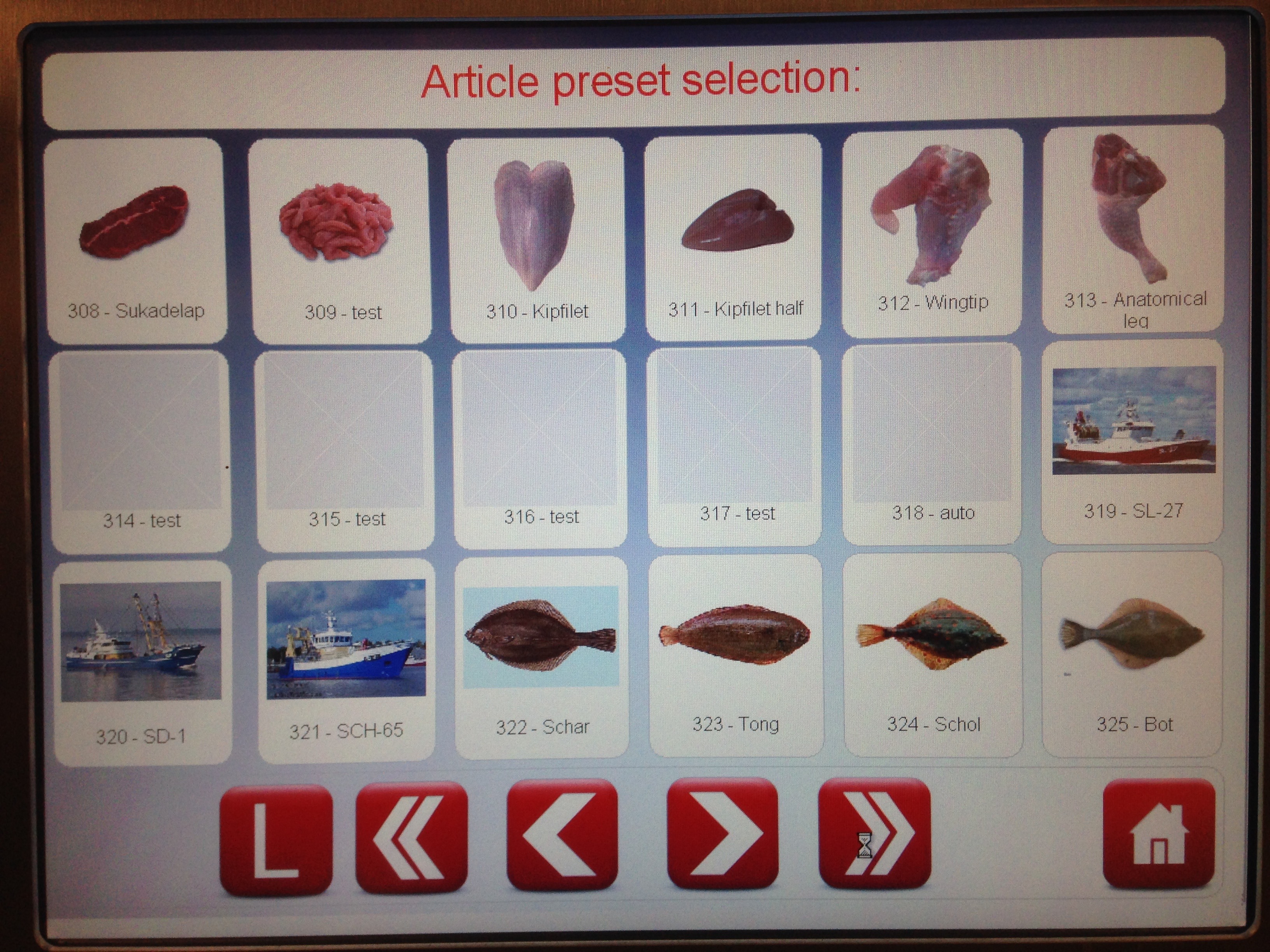

9999 adaptable programs
Weighing range: 10gr - 30kg
Accuracy: to be specified depending on the weighing range
Maximum speed: up to 160 pieces / minute (depending on the product size)
Fully watertight
Drum motors in stainless steel, IP66 or hygienic motor-reduction gear IP69K

  • Product Characteristics

    Construction: Stainless steel AISI 304 & 316 and FDA approved food plastics
    Conveyor belt: Standard polythene grid
    Drum motor: Stainless steel

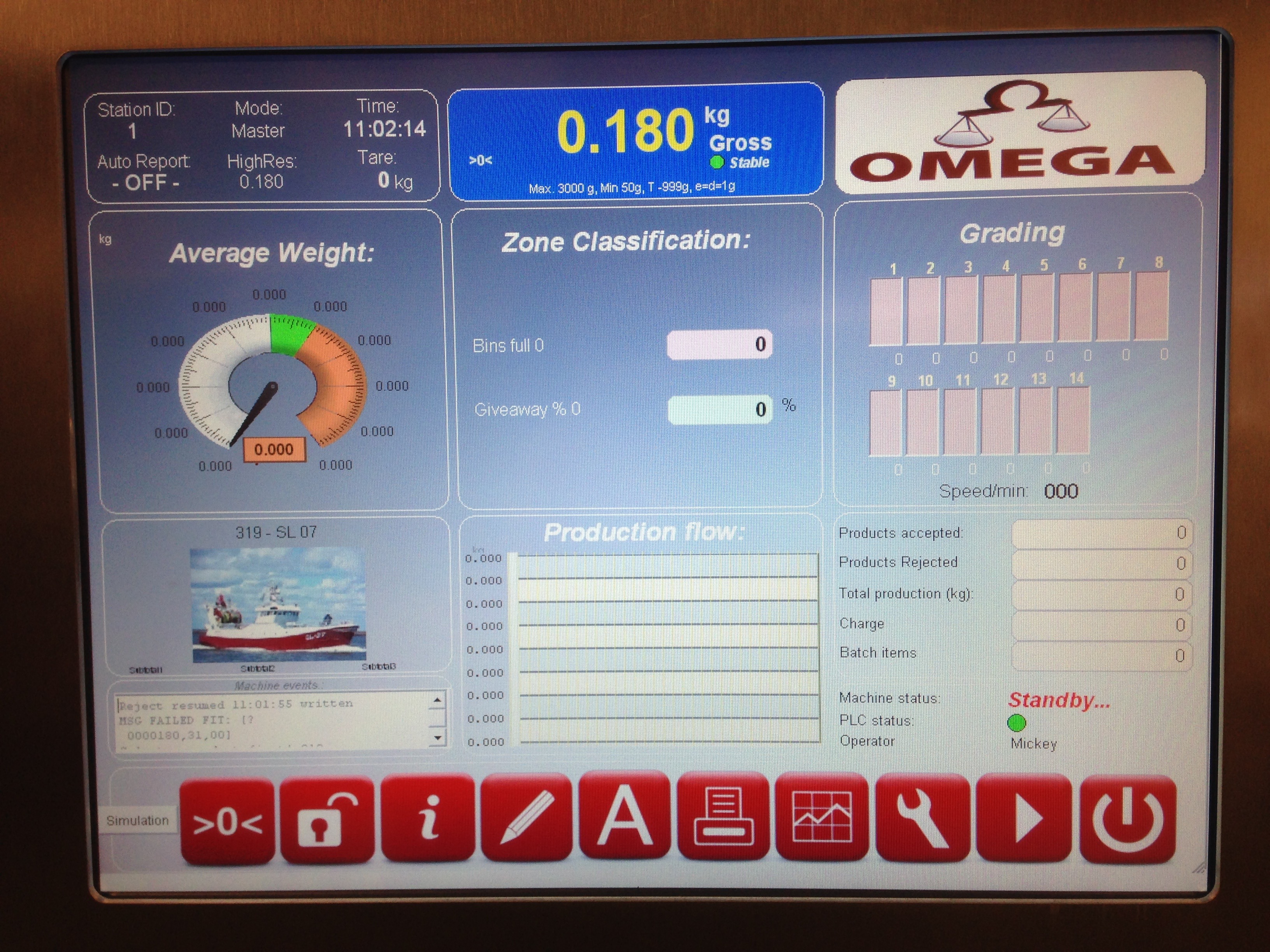

    Indicator: WPL R10 with ethernet connection
    Air supply: 6bar, capacity depending on the model
    Protection: Loadcells protected against mechanical overload, watertight IP68
    Outputs: From 1 to 16 Single and double line
    Software: Autocalibration and auto zero, smart batching software


    Infeed, output and packaging systems
    Stainless steel 316L model

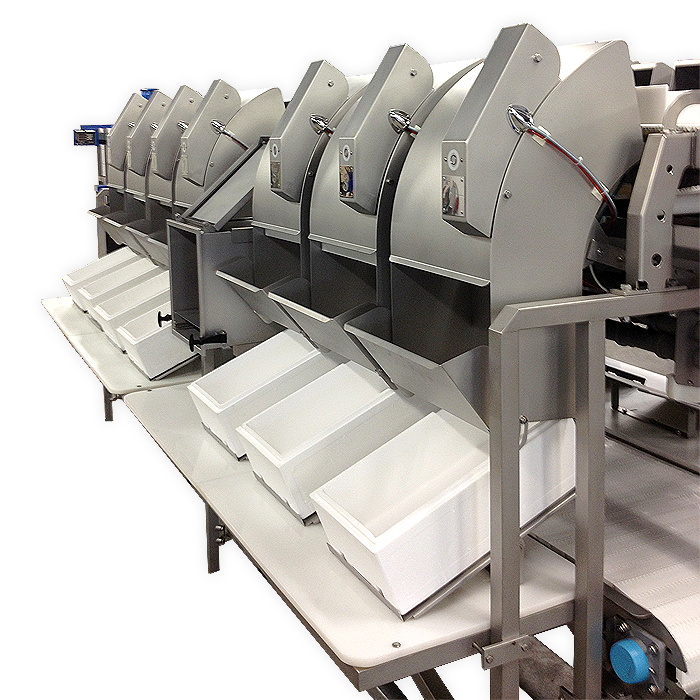

    Weighing bins per output for optimal accuracy with smaller product weights
    Label printers
