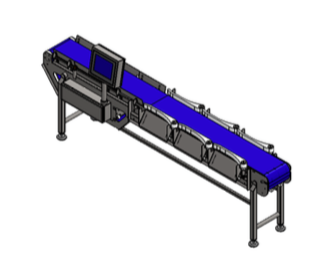

Compact grader

WPL industries Marine graders consist of a special part for the infeed ,weightplatform and grading position all with just one belt.

WPL industries sets the new standards for grading systems.

The WPL industries solutions leads the way in this field with various infeed systems, batching and outfeed systems.

The build in motion compensation for use at sea take care of weight fluctuations caused by waves and vibrations.

• Accuracy
• Fast weighing and grading
• Robust construction
• Several output possibilities
• Several infeed possibilities

  • Product Characteristics
  • Applications

    • Frozen seafood, poultry, meat
    • Fresh seafood, poultry, meat
    • Grading and batching to size
    • Batching with minimum overweight


    • 9999 adaptable recipes
    • Weighing range: 10gr - 20kg
    • Accuracy: to be specified depending on the weighing range
    • Maximum speed: up to 120 pieces / minute (depending on the product size)
    • Fully watertight
    • Drum motors in stainless steel, IP66 or hygienic motor-reduction gear IP69K


    • Construction: Stainless steel AISI 304 & 316 and FDA approved food plastics
    • Conveyor belt: Standard polythene grid
    • Drum motor: Stainless steel
    • Indicator: R10 touch XL with ethernet connection
    • Air supply: 6bar, capacity depending on the model
    • Protection: Loadcells protected against mechanical overload, watertight IP69K
    • User friendly: Easy to use and maintain, detachable modulair belt
    • Outputs: From 1 to 16 Single and double line
    • Software: PFA ( Perfect fit algorithm ) for optimal batching / grading


    • Infeed, output and packaging systems
    • Stainless steel 316L model
    • Weighing bins per output for optimal accuracy with smaller product weights
    • Labelprinter for boxes/crates
    • Omega backoffice system
    • Legal for Trade
