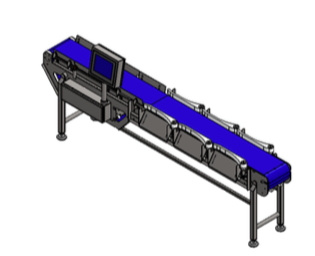

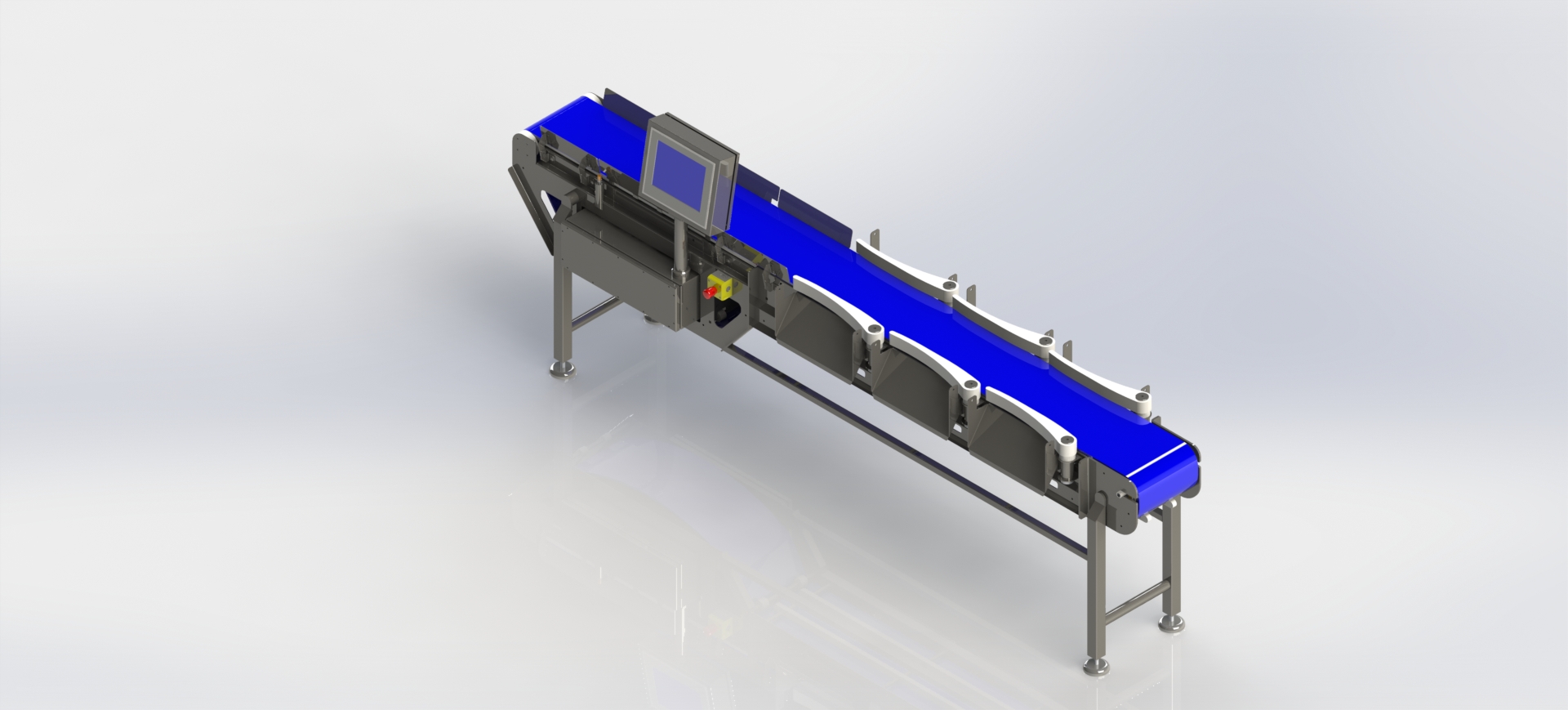

Compact Grader

WPL industries compact graders consist of a special part for the infeed ,weightplatform and grading position all with just one belt.

This WPL Industries solution leads the way in the field trough various batching options and other outfeed options from 2 to 7 stations combined left/right and in line.


High accuracy
High weighing and grading speed
Robust and compact construction
Several output possibilities
User friendly: Easy to use and easy to clean


Vulnerable & small products
Fishfillet (fresh or frozen)
Frozen lobstertails


Maximum product dimensions: 400 x 250 mm, XL version up to 600 x 400 mm
99 adaptable programs
Range: 0 - 1,5 kg, alternatively: 5 kg
Precision: standard deviation 0-500 gr: 1.5 gr / 500-1500 gr: 2 gr
Max. speed: 120 pcs/min
Completely watertight
Grading to size and number

  • Product Characteristics

    Construction: Stainless steel AISI 304, FDA approved food plastics
    Conveyer belt: Grid polyethylene
    Selection keyboard: Stainless steel IP67 with integrated electronics
    Indicator: WPL R10 Ethernet-connection
    Power Supply: Single phase 230 VAC, 50 Hz, 700W
    Air Supply: 200l/min/6bar Protection: Protected against mechanical overload. Loadcells hermetically protected IP68


    Batching to weight
    label printers
    Connection to backoffice software
