Shear beam loadcells

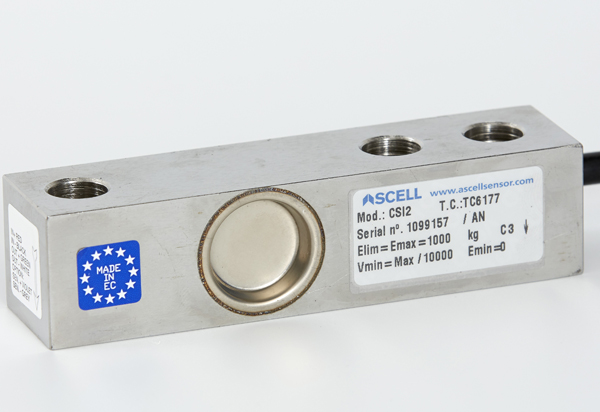

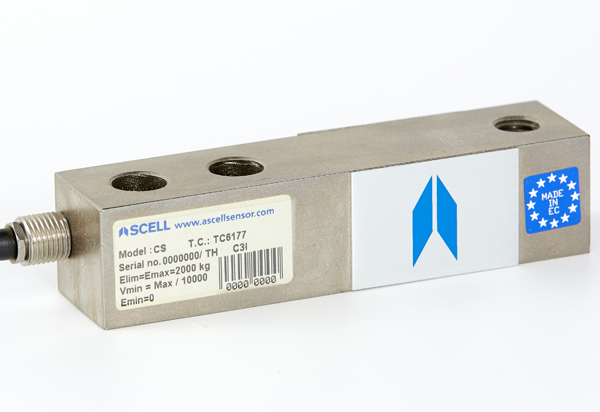

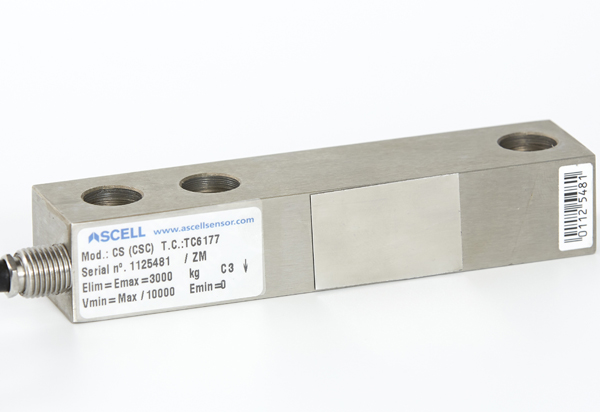

Shear beam load cell – from 750 to 5000 kg

The shear beam load cell consists of a stainless steel body and is hermetically sealed by laser welded stainless steel cups. It has been designed for used in industrial environments with an aggressive atmosphere, such as the chemical industry. Some of the load cells have a test certificate for 3 000d. Meating the IP 68 standard,

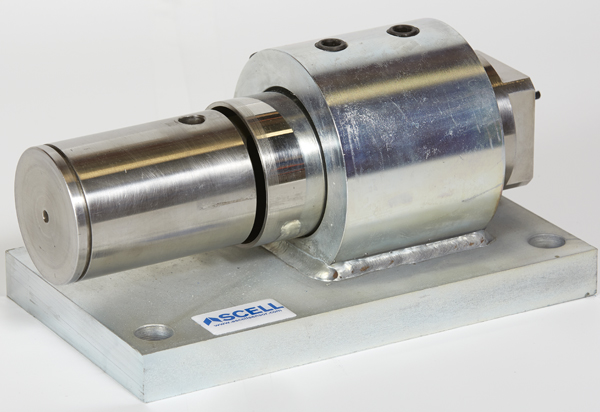

Special mounting parts to adapt the load cell to its mechanical environment are available as an option.

DESCRIPTION
The working principle of the load cell is to measure the deformation of a beam subjected to shear stress. The strain gauges are arranged to form a Wheatstone bridge, converting the mechanical force exerted on the load cell into an electrical signal.

CONFORMITY
Test certificate issued by a notified body in accordance with OIML recommendation R60.
