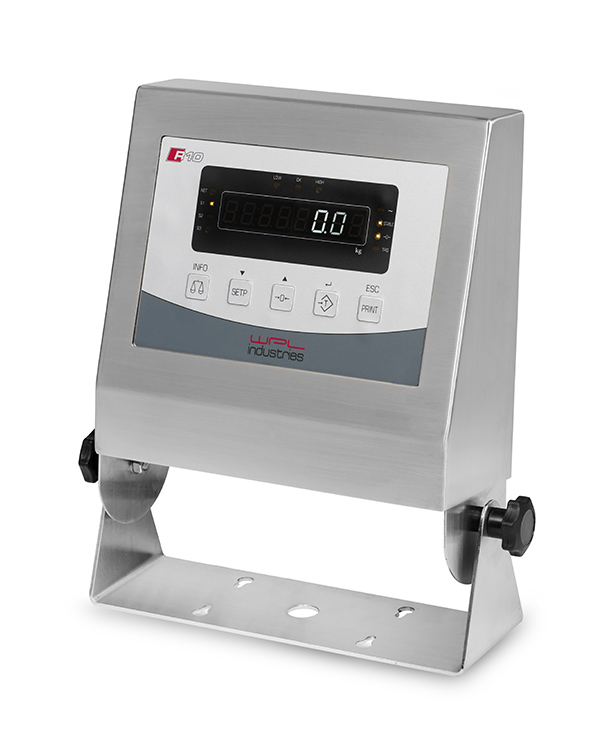

R10 WP waterproof scale indicator

Specially designed indicator for the maritime industry. Designed and manufactored in the Netherlands!

Universal Use
Suitable for difficult environmental conditions and locations with high hygienic standards, as in the food, pharmaceutica,chemical and maritime industry.

High Operational Security
Fast and error-free operation is ensured by a 7 segment led display for the indication of weight, IDs and operator prompts in combination with the membrame buttons

Weighing Electronics
The R10 standard connects to one to three scales with analog strain gauge load cells. W&M approved resolution for C3 and C6 loadcells. Calibration is possible as single or multi range (e.g. 2 x 4000 d) Interface modules for digital load cells are available as options.

Weighing Program
Display of net, tare and gross weight. Operator prompting with entry based on scipts.
Weighing data can be stored in an internal W&M approved data archive.
Optional hardware shields are available for advanced connectivity and integration.

Build in interpreter
For application integration the R10 series have a built in command interpreter. Over 120 commands are available to control the indicator and various functions

Data Logging
Via optional data logger. Printout of weights, totals, date, time, stored texts, entered IDs and calculated values.

Data Transmission To PC
Transmission of all entered IDs, date, time and weight after each weighing cycle, data storage on the PC's hard disk or SSD.

PC connect Mode
Via the USB interface. Reading of weight, taring, zero setting and other functions can be remotely controlled from a PC. Weights can be stored in a W&M approved data archive on the R10 or on the PC's for verification. Data transmission is possible through serial interface or Ethernet LAN.

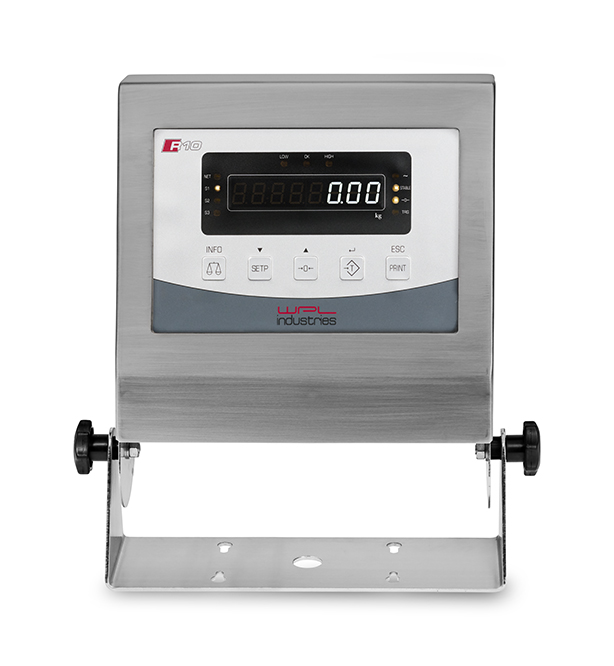

Display and keyboard
7 segment crystal white display for indication of weight and operator prompts and calibration.
Sealed membrane keyboard with tactile feedback, general keys for the input of tare weights and additional information, scale keys for zero setting and taring and function keys.

Checkweighing and Filling
With the build-in relais two weight thresholds can be monitored, e.g. for max. or min. values. Start of weighing cycle and taring is possible from external switches. Alternatively the inputs and outputs can be used for a filling sequence with start/stop switch.

  • Product Characteristics
  • The R10 has the following distinctive features:

    • Design and styling for industrial use (robustness, high IP rating and easy to clean).
    • Ease of use.
    • For connection to one or more load cells. Available in tabletop, wall, column or panel mounting versions.
    • High quality construction in AISI 316 stainless steel.
    • Latest technology including white segmented LEDs with dim technology
    • High capacity optional battery.
    • Optional Data storage device with flash card
    • Industry standard shields for extention with Bluetooth, WiFi, Ethernet based

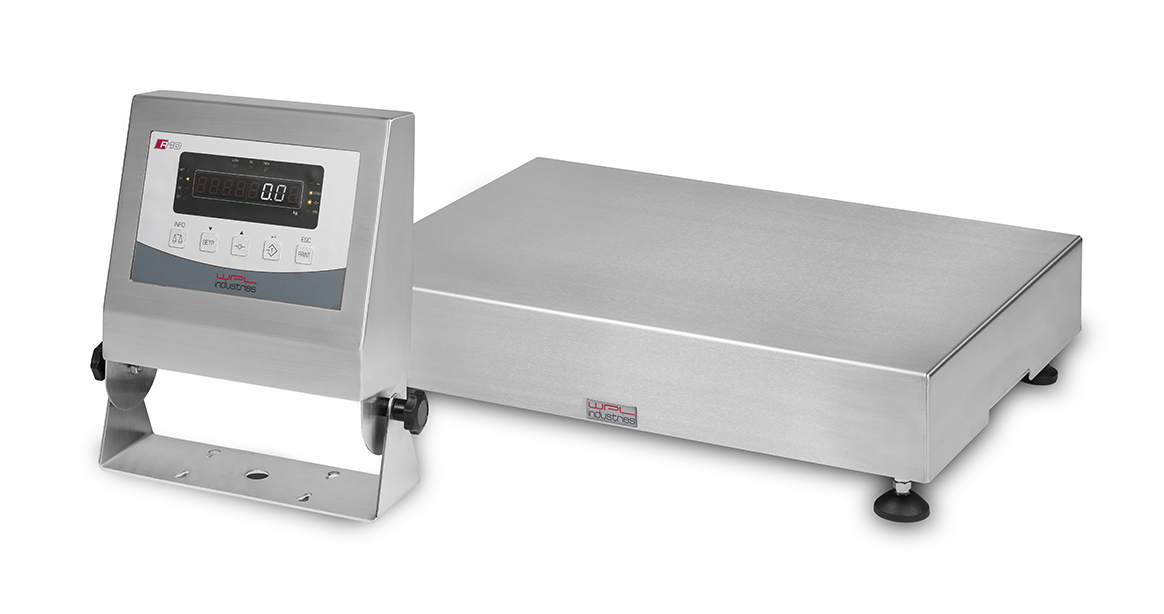

    • Up to three platforms can be connected.
    • LED Display, 0.56 inch (14 mm), 7 segment
    • 24bits Sigma/Delta AD
    • 3 ADC channels
    • On board temperature monitoring
    • Battery charge circuit
    • USB device port connects directly to a PC
    • AC or DC models
    • Built-in industrial connectors for loadcells or serialports
    • Realtime clock
    • Hardware slot for arduino uno shields
    • Operator functions through Menu key for Scale select, Preset Tare, Accumulator, Time & Date and Setpoints
    • Password protection for user and configuration changes.
    • 50 presets for weight checking with underlimit, target and overlimit setpoints, tare and price
    • 13 onboard digital I/O channels for further extention
    • Selectable ticket formats for Header Text, Gross, Net, Accumulator, Setpoints
    • Local/Remote operation
    • Multi range or multi interval weighing
    • Filter settings for light, medium and heavy noise
    • Relay output (4)


    • Analog output, 12-bit resolution, 0-10VDC, 0-20mA, 4-20mA
    • Relay output, (4) dry contact, normally open (SPST) 30VDC/250 VAC at 3 Amps
    • Interface for Profinet®, Profibus®, Modbus TCP®, EtherNet/IPTM and DeviceNet® protocols
    • Wifi module
    • Bluetooth module
    • Metrological hardware sealing kit
    • Battery pack
    • Labelprinter with printergarage


    • Single weighing
    • Parts counting
    • Tolerance check +/-
    • Filling
    • Calculation
    • Datalogger
