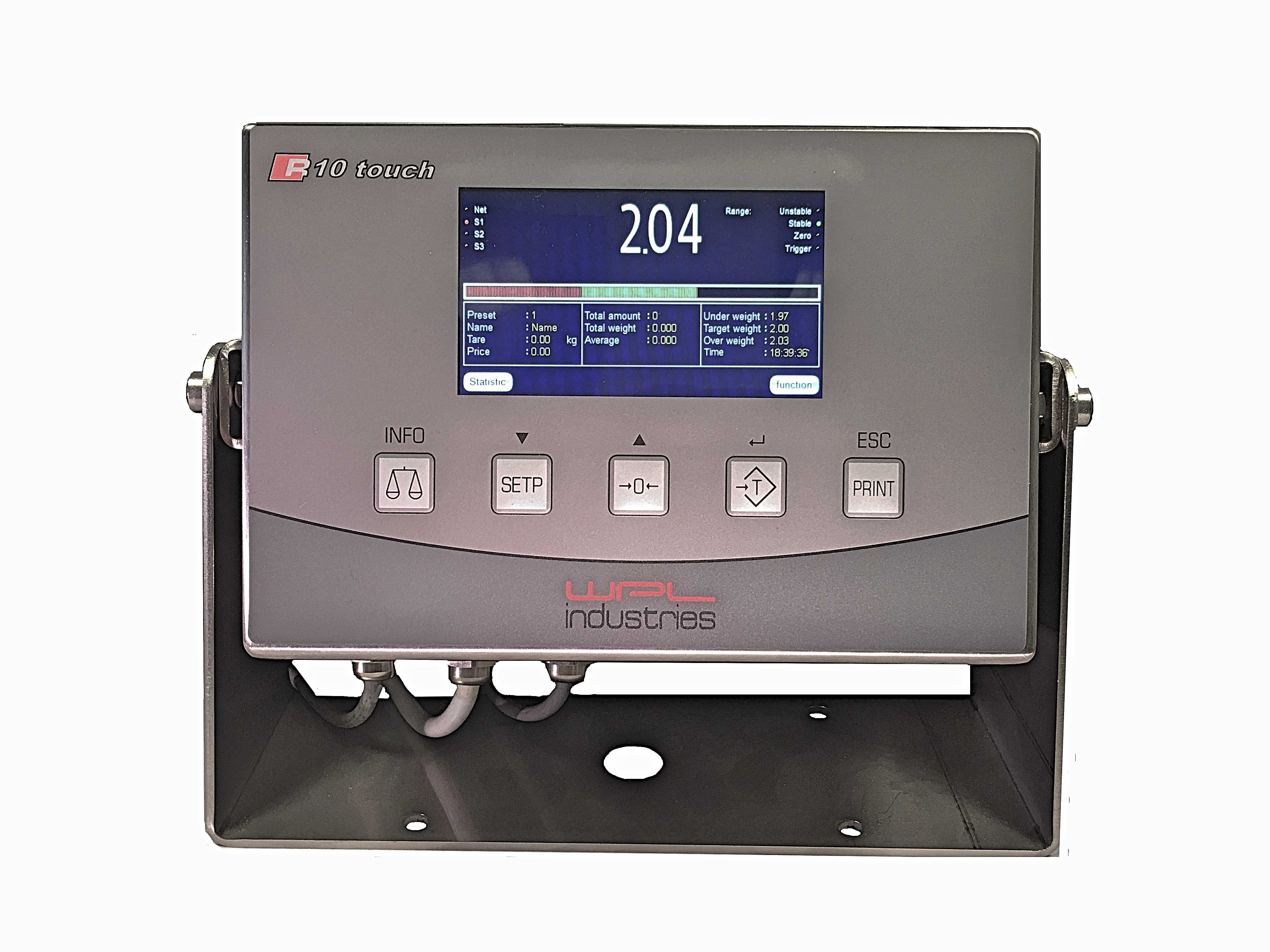

R10 Touch Indicator

WPL Industries BV manufactors a complete range of weighing indicators with accurracy up to 10.000 counts. Designed and manufactored in the Netherlands!

Weighing indicators - advanced technology at your finger tip
Scales cannot be properly operated without suitable displays or terminals. Their design and functionality depends obviously on the actual type of the scales and their purpose. For bench scales, a integrated display that shows the currently measured weight is normally sufficient. For heavy-load scales, large-scale displays are the preferred option, as they can be read from a distance.

Certain weighing equipment requires weighing terminals, amplifiers and converters. These devices are for example necessary to filter, linearize, amplify and standardise the outputs of load cells, force transducers and strain gauges. The signals are sent to a controller or PC where the data is evaluated, analysed and processed for specific measuring, regulating and control tasks.

Weighing terminals normally include a number of amplification and filter circuits processing the analogue signals. Many WPL industries amplifiers come with multiple adc's , which means that more than one signal can be received and amplified at the same time. The R10 amplifier series by example have three different adc amplifiers for a connection of three platform scales.

  • Product Characteristics
  • The R10 Touch has the following distinctive features:

    • Touch screen 4.3"
    • Design and styling for industrial use (robustness, high IP rating and easy to clean).
    • Ease of use.
    • For connection to one or more load cells. Available in tabletop, wall, column or panel mounting versions.
    • High quality construction in AISI 316 stainless steel.
    • Latest technology including white segmented LEDs with dim technology
    • High capacity optional battery.
    • Optional Data storage device with flash card
    • Industry standard shields for extention with Bluetooth, WiFi, Ethernet based
    • Up to three platforms can be connected.
    • 24bits Sigma/Delta AD
    • 3 ADC channels
    • On board temperature monitoring
    • Battery charge circuit
    • USB device port connects directly to a PC
    • AC or DC models
    • Built-in industrial connectors for loadcells or serialports
    • Realtime clock
    • Hardware slot for arduino uno shields
    • Operator functions through Menu key for Scale select, Preset Tare, Accumulator, Time & Date and Setpoints
    • Password protection for user and configuration changes.
    • 50 presets for weight checking with underlimit, target and overlimit setpoints, tare and price
    • 13 onboard digital I/O channels for further extention
    • Selectable ticket formats for Header Text, Gross, Net, Accumulator, Setpoints
    • Local/Remote operation
    • Multi range or multi interval weighing
    • Filter settings for light, medium and heavy noise
    • Relay output (4)

    OPTIONS/ACCESSORIES

    • Analog output, 12-bit resolution, 0-10VDC, 0-20mA, 4-20mA
    • Relay output, (4) dry contact, normally open (SPST) 30VDC/250 VAC at 3 Amps
    • Interface for Profinet®, Profibus®, Modbus TCP®, EtherNet/IPTM and DeviceNet® protocols
    • Metrological hardware sealing kit
    • Battery pack

    Applications

    • Single weighing
    • Parts counting
    • Tolerance check +/-
    • Filling
    • Calculation

  • Extension possibilities for optimal usage
  • Weight indicator R10 Touch XL

    The R10 Touch has the following distinctive features:

    • 7" touch screen
    • Design and styling for industrial use (robustness, high IP rating and easy to clean).
    • Ease of use.
    • For connection to one or more load cells. Available in tabletop, wall, column or panel mounting versions.
    • High quality construction in AISI 316 stainless steel.
    • Latest technology including white segmented LEDs with dim technology.
    • High capacity optional battery.
    • Optional Data storage device with flash card.
    • Industry standard shields for extention with Bluetooth, WiFi, Ethernet based.
    • Up to three platforms can be connected.
    • 24bits Sigma/Delta AD.
    • 3 ADC channels.
    • On board temperature monitoring.
    • Battery charge circuit.
    • USB device port connects directly to a PC.
    • AC or DC models.
    • Built-in industrial connectors for loadcells or serialports.
    • Realtime clock.
    • Hardware slot for arduino uno shields.
    • Operator functions through Menu key for Scale select, Preset Tare, Accumulator, Time & Date and Setpoints.
    • Password protection for user and configuration changes.
    • 50 presets for weight checking with underlimit, target and overlimit setpoints, tare and price
    • 13 onboard digital I/O channels for further extention.
    • Selectable ticket formats for Header Text, Gross, Net, Accumulator, Setpoints.
    • Local/Remote operation.
    • Multi range or multi interval weighing.
    • Filter settings for light, medium and heavy noise.
    • Relay output (4).

    OPTIONS/ACCESSORIES

    • Analog output, 12-bit resolution, 0-10VDC, 0-20mA, 4-20mA.
    • Relay output, (4) dry contact, normally open (SPST) 30VDC/250 VAC at 3 Amps.
    • Interface for Profinet®, Profibus®, Modbus TCP®, EtherNet/IPTM and DeviceNet® protocols.
    • Metrological hardware sealing kit.
    • Battery pack.

    Applications

    • Single weighing.
    • Calculation.
    • Fast weighing.
    • Parts counting.
    • Tolerance check +/-.
    • Filling with graphs.
    • Formula calculation.
    • Check weighing.
